PBAX316-90108MV1 USB桌面高清音频解码器评估板测试指标¶

1, USB INPUT 1KHz RCAOUT测试指标¶

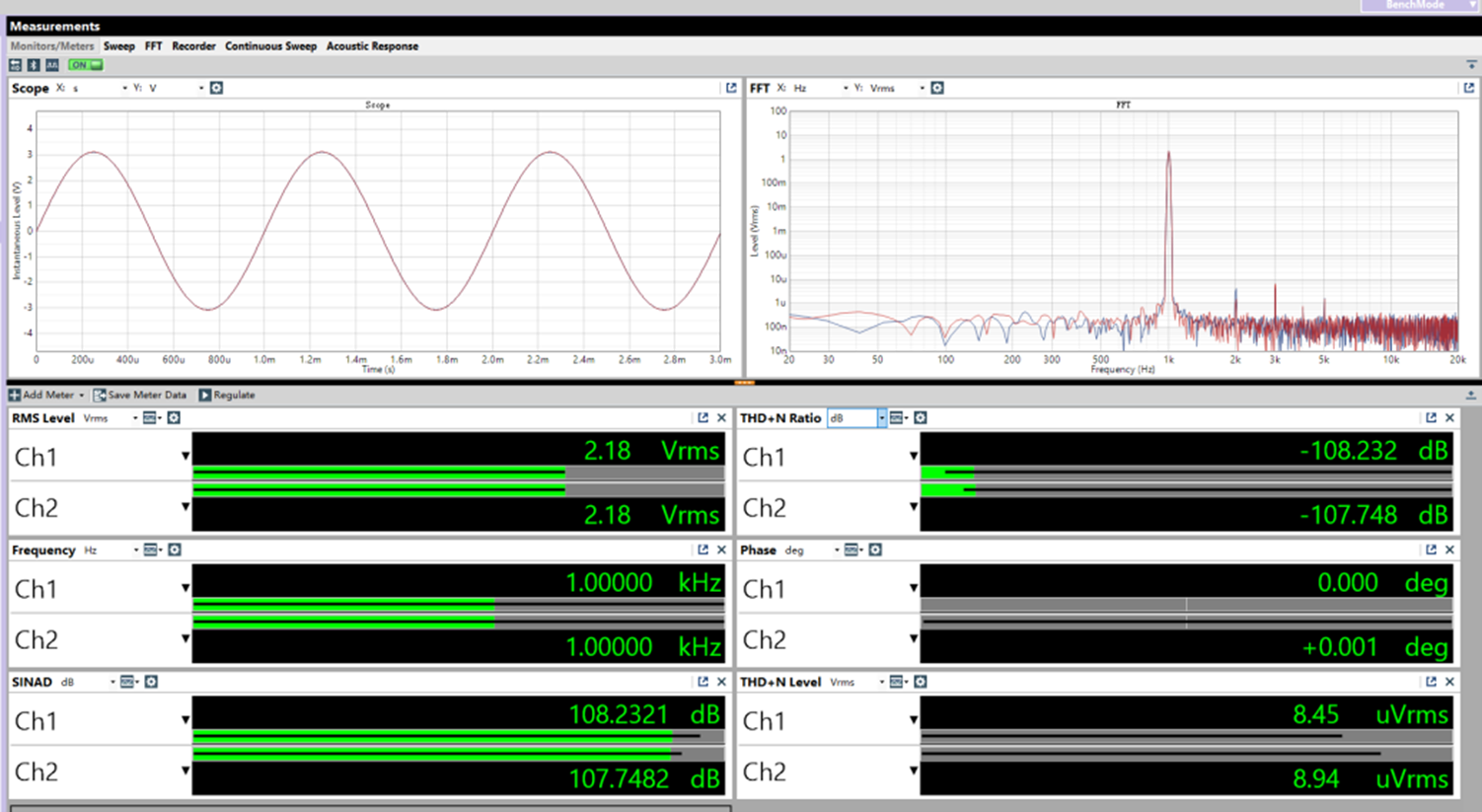

THD+N Ratio¶

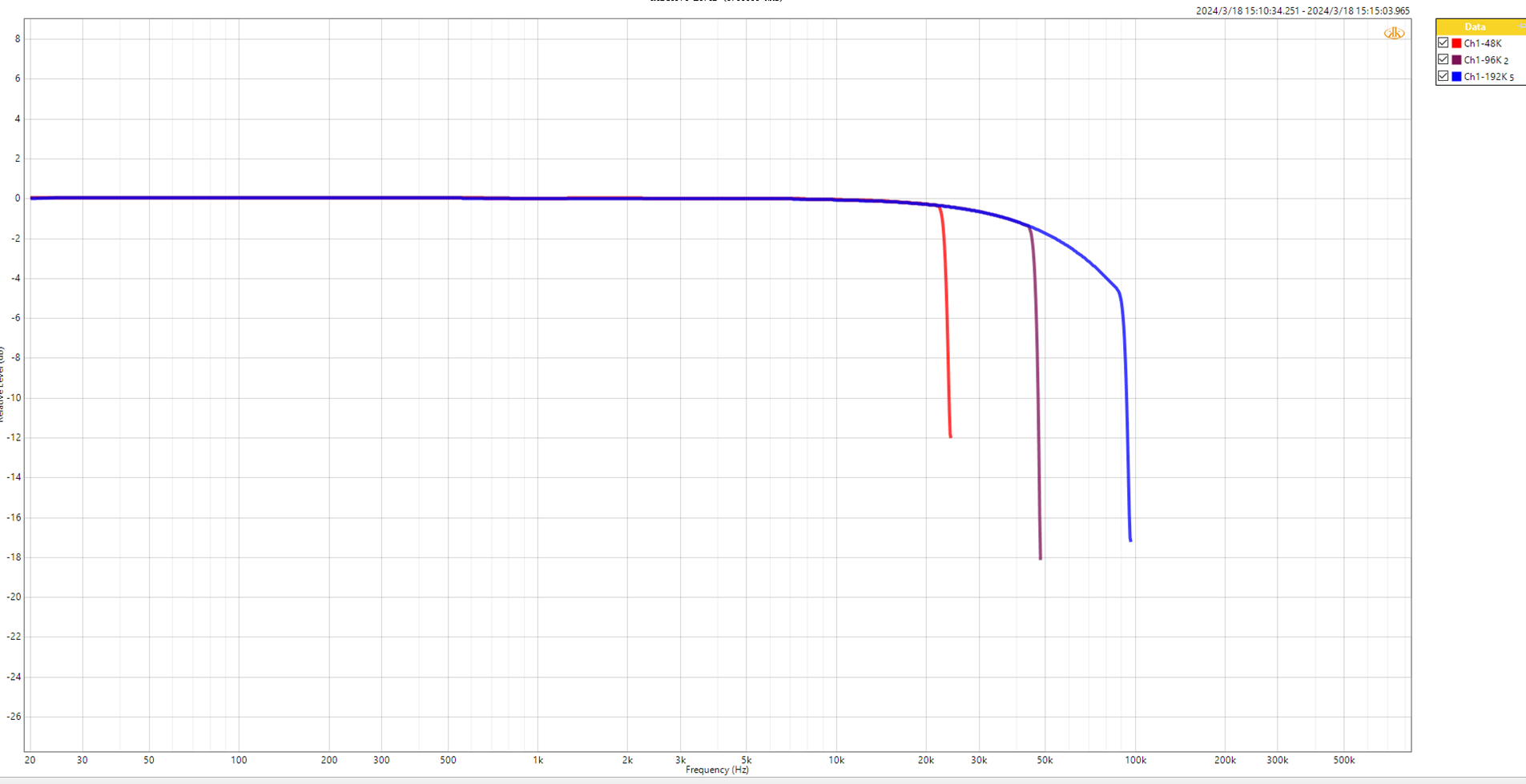

Frequency Response¶

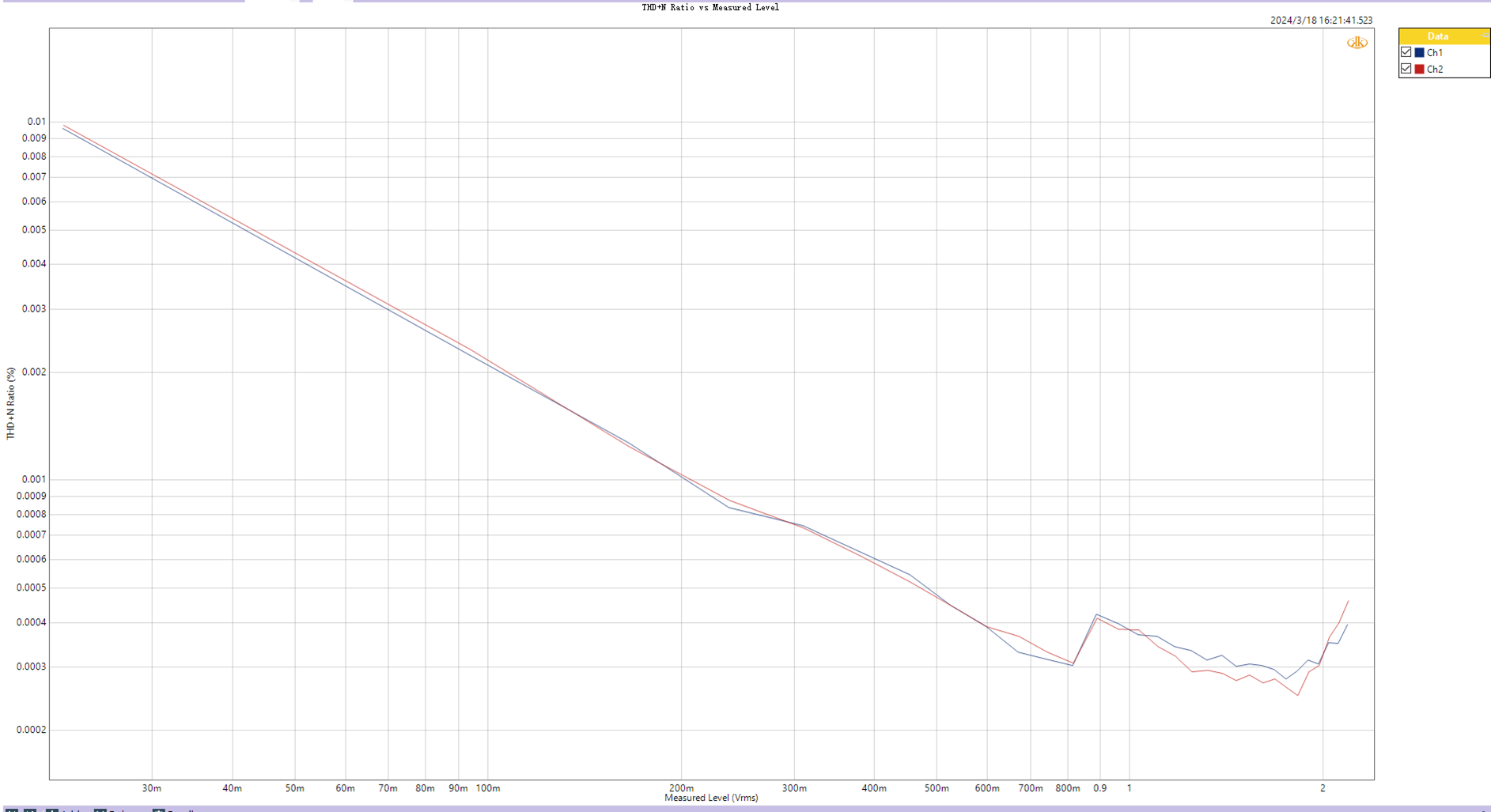

THD+N Level¶

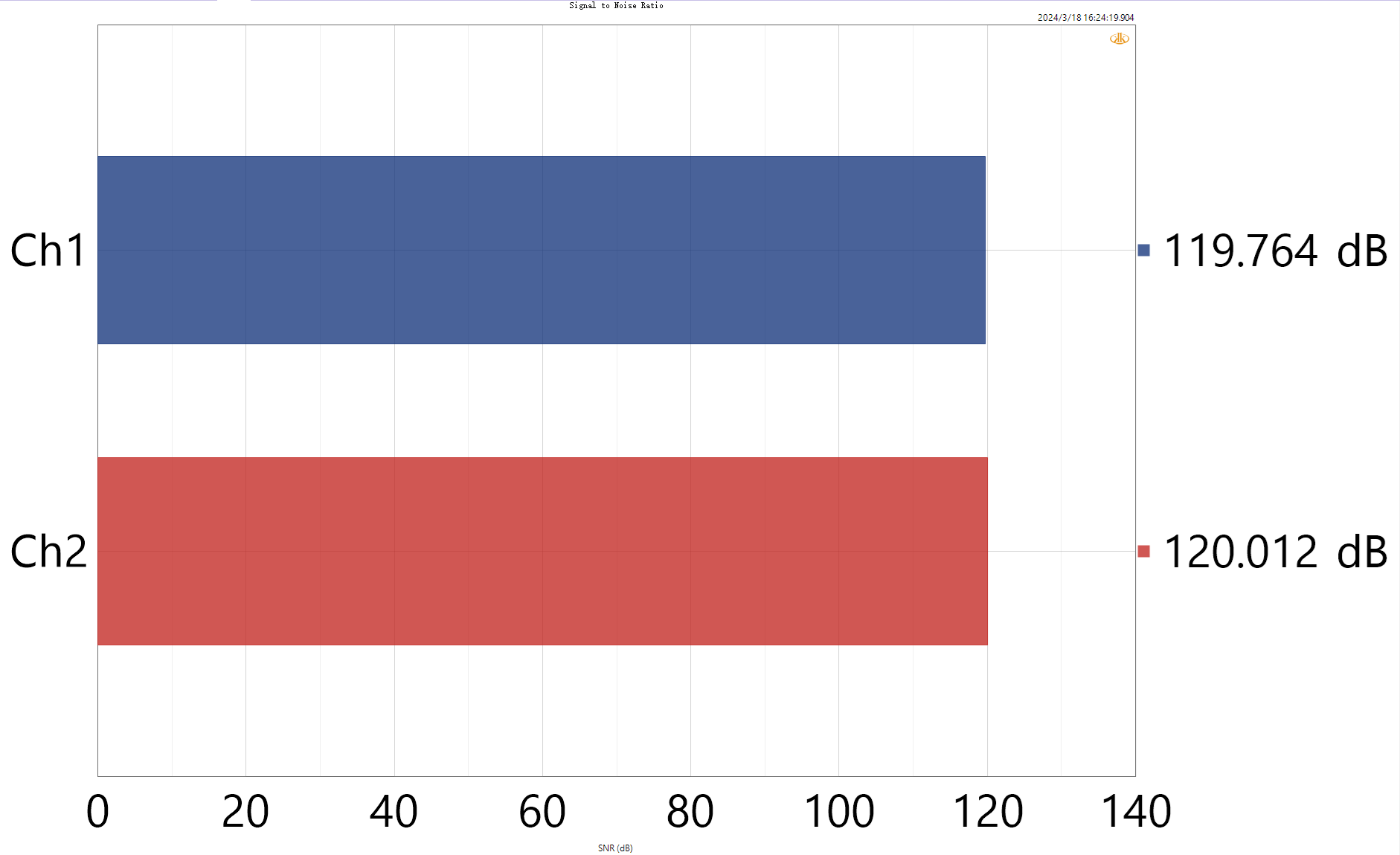

SNR¶

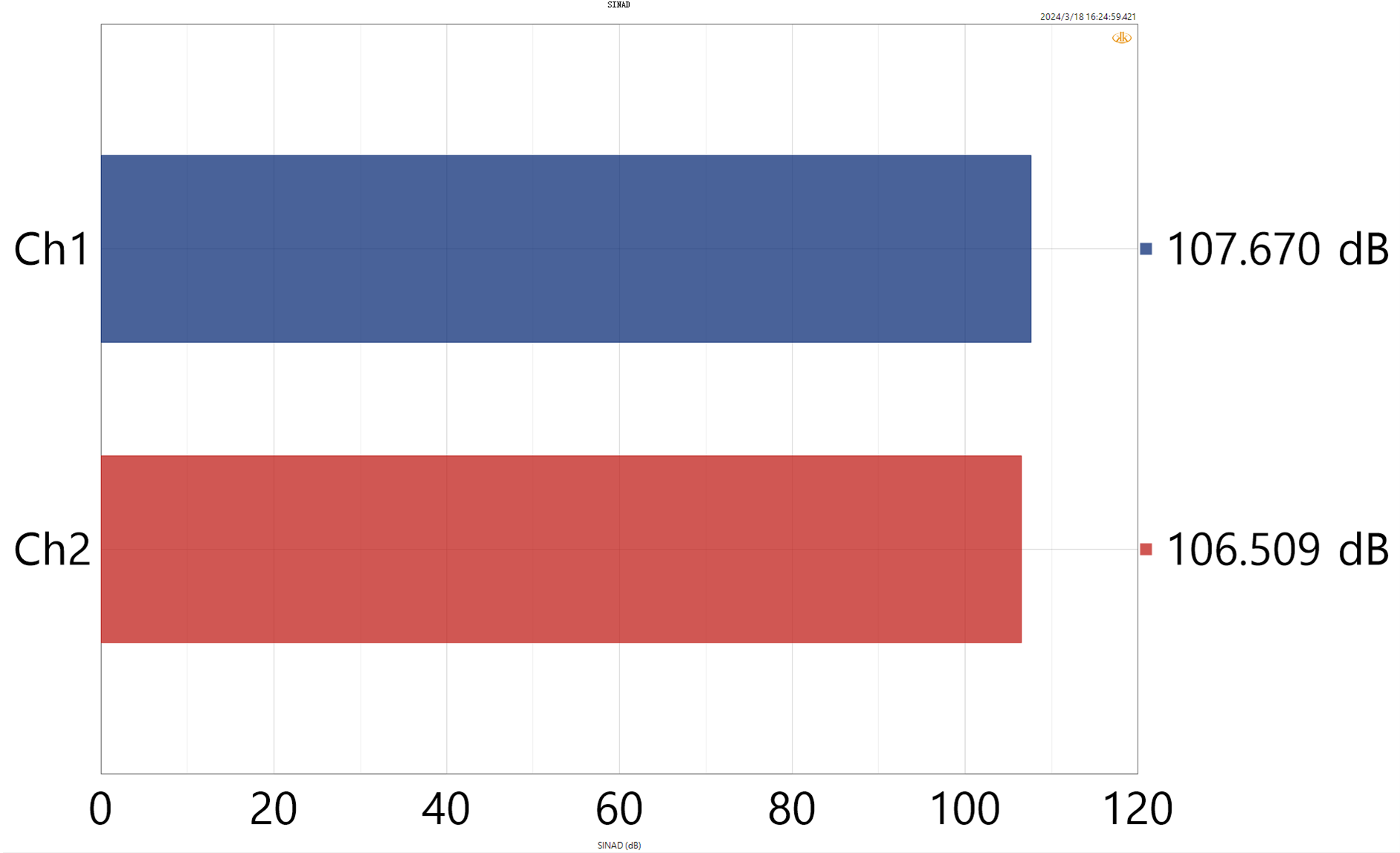

Signal-to-Noise and Distortion Ratio¶

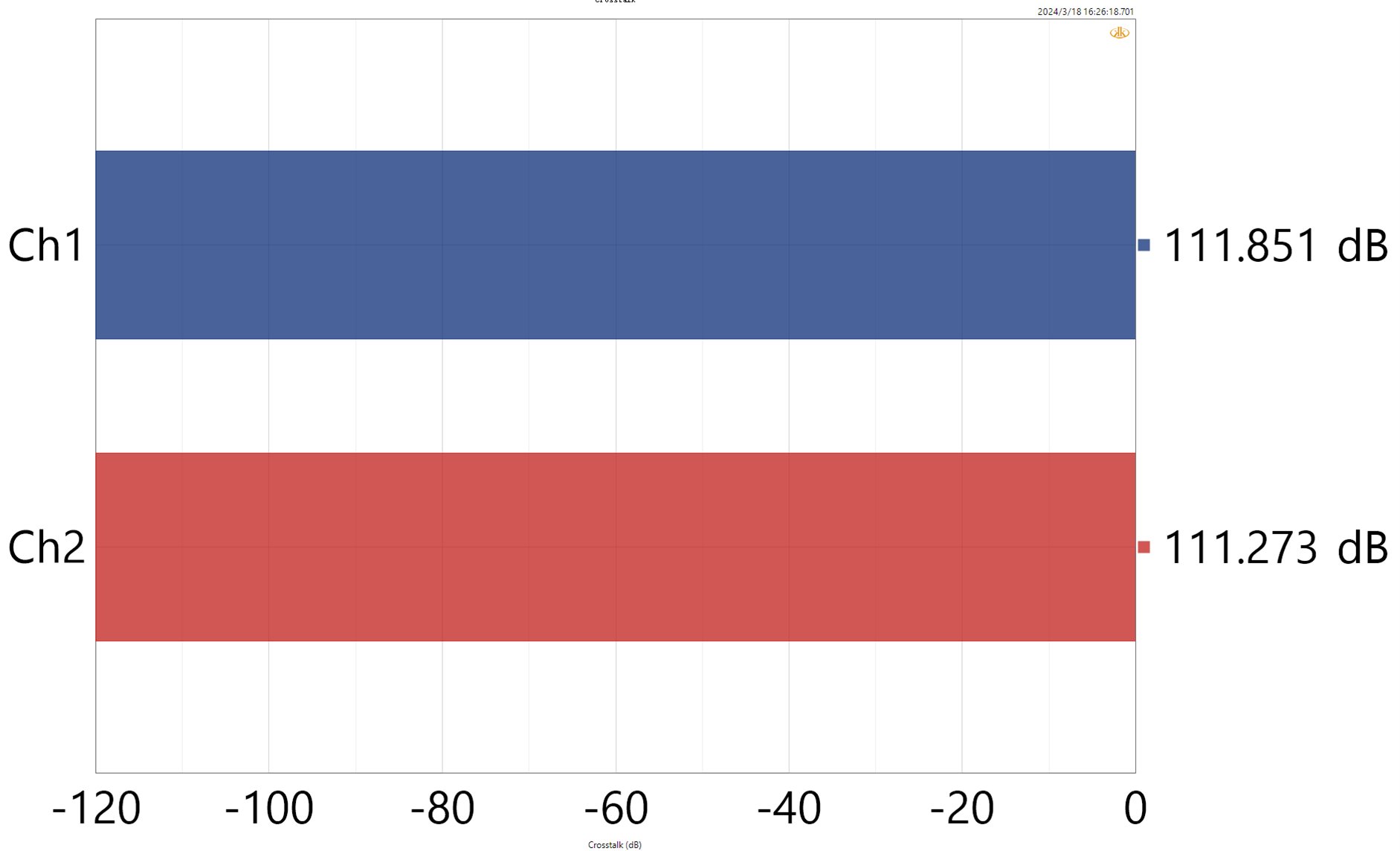

CROSSTALK¶

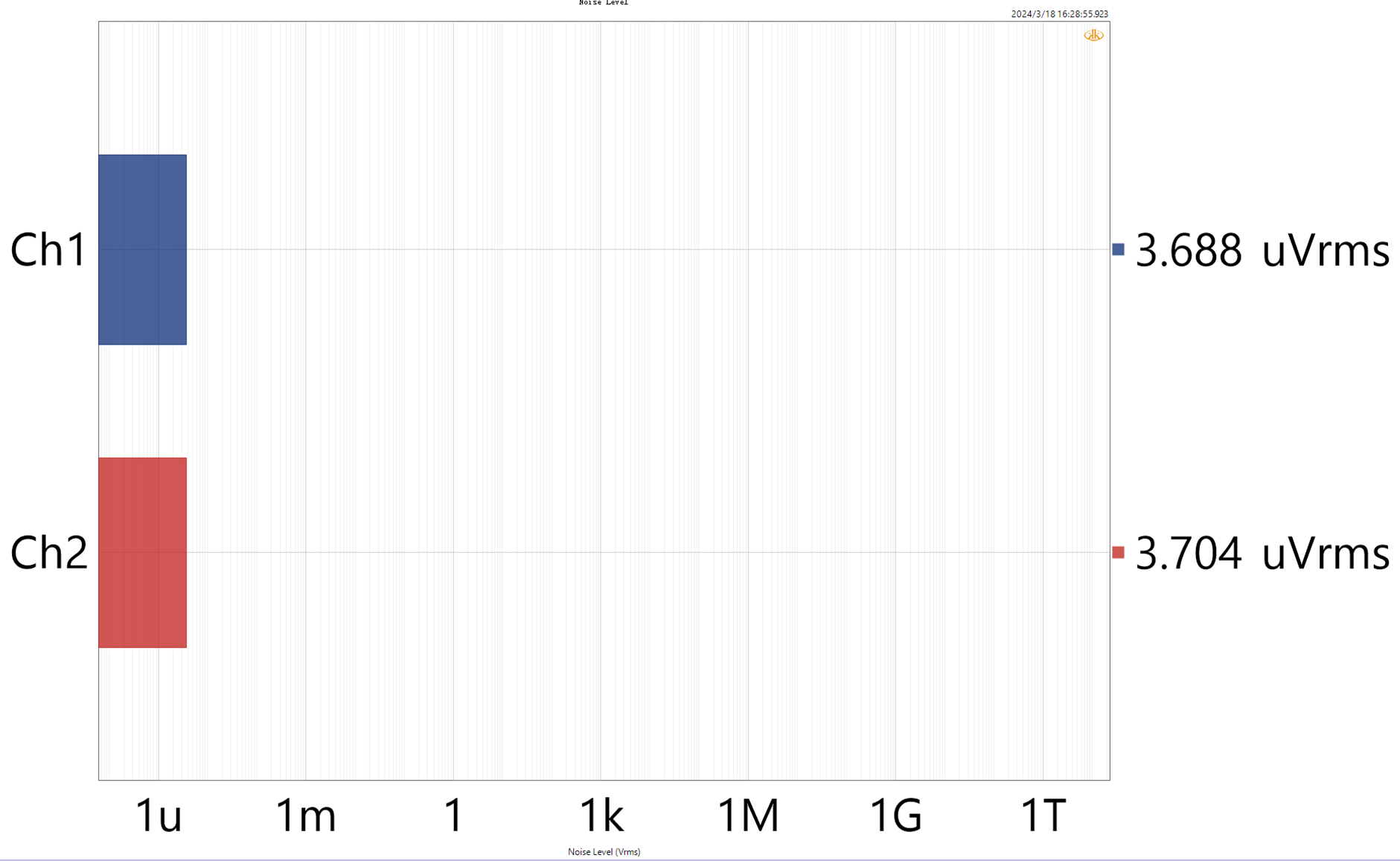

Noise Level¶

2, S/PDIF INPUT 1KHz RCAOUT测试指标¶

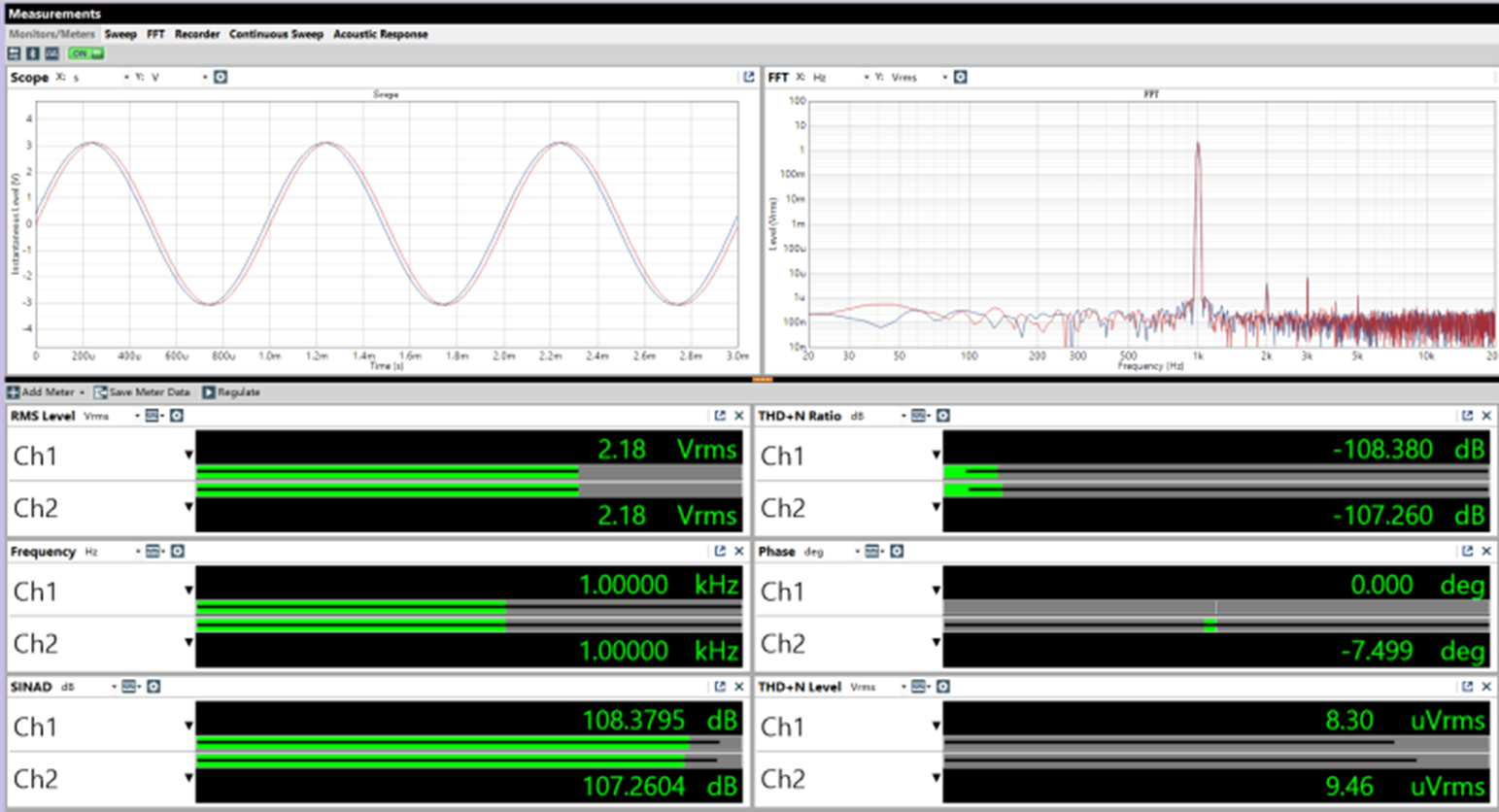

THD+N Ratio¶

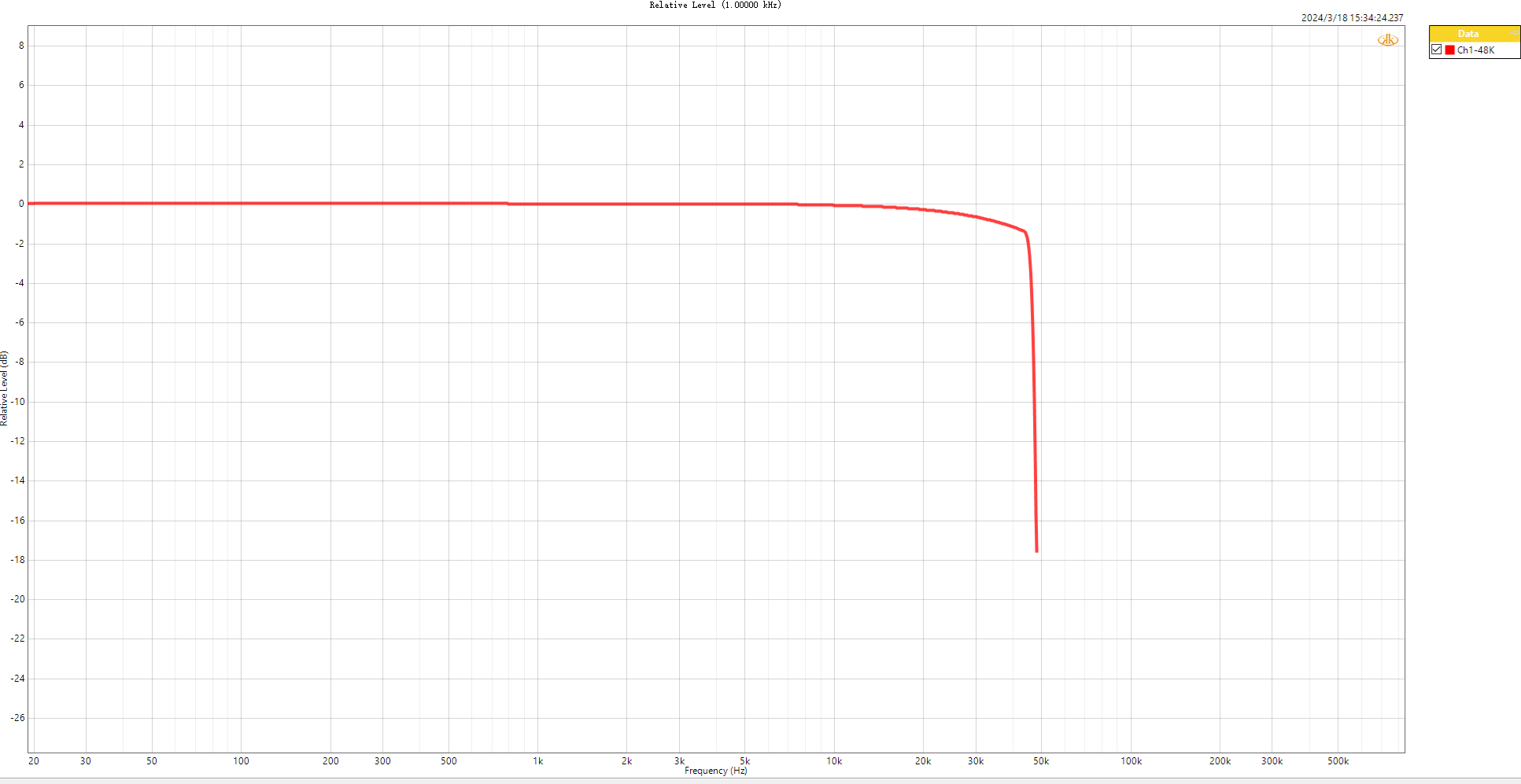

Frequency Response¶

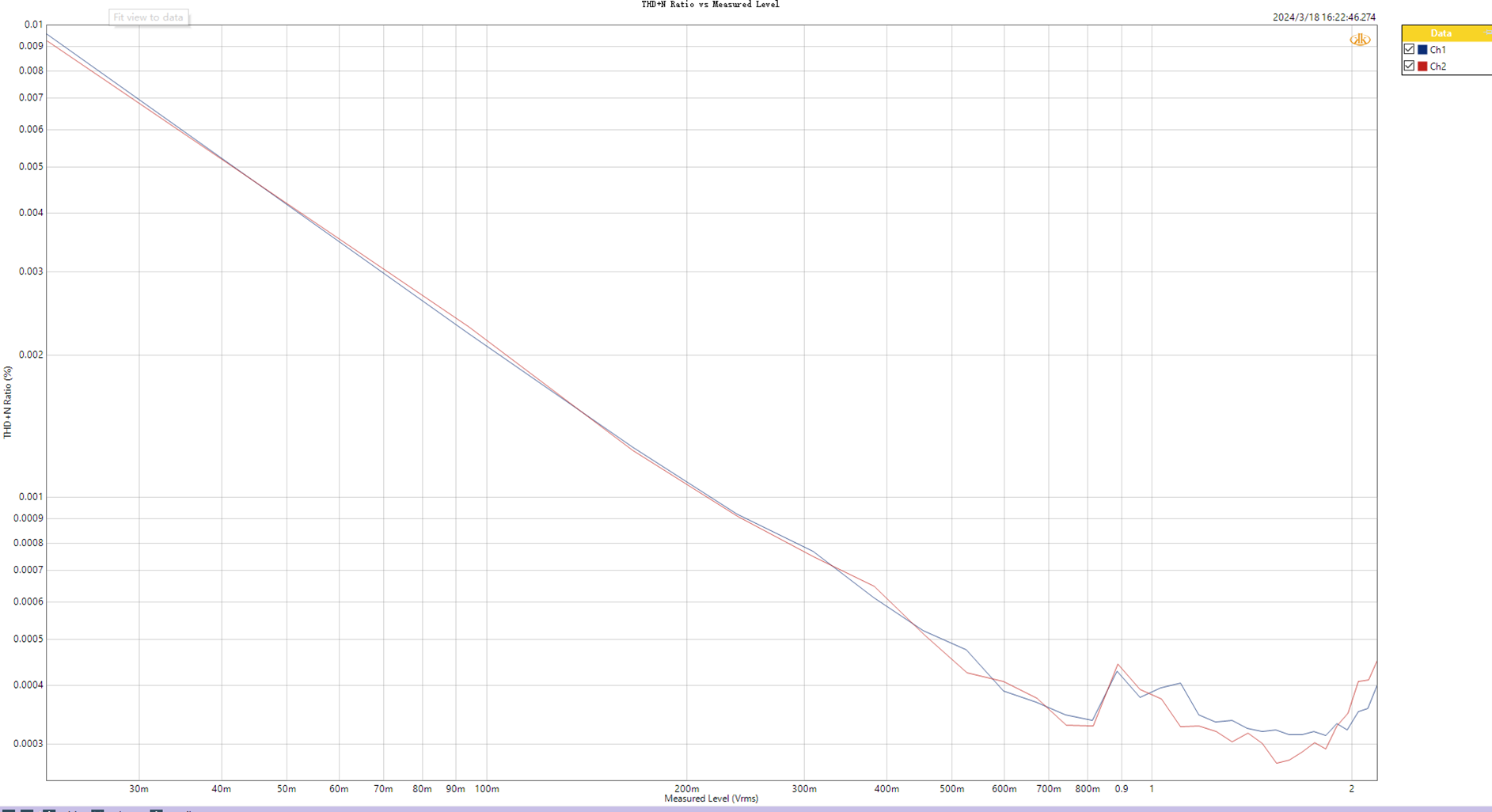

THD+N Level¶

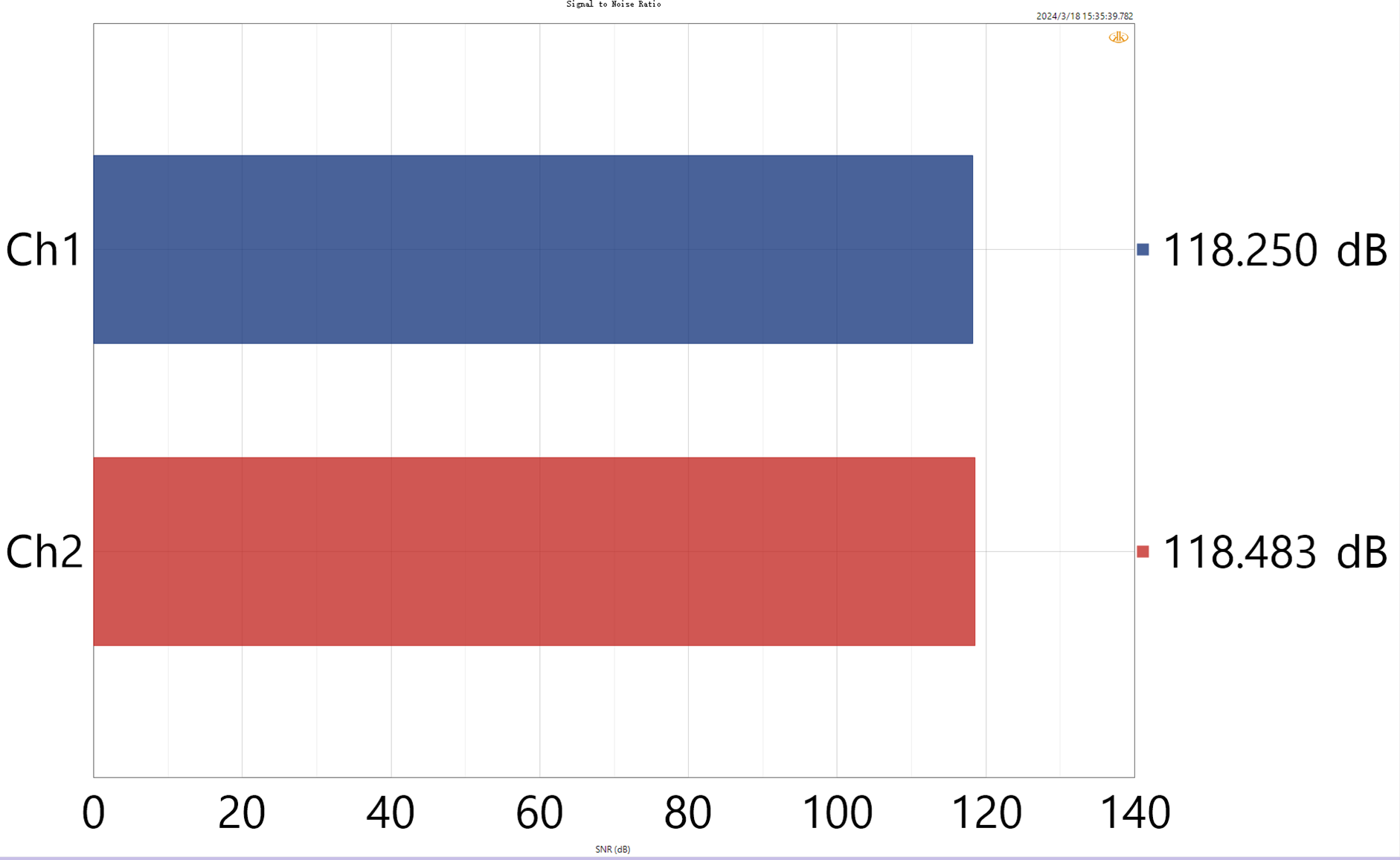

SNR¶

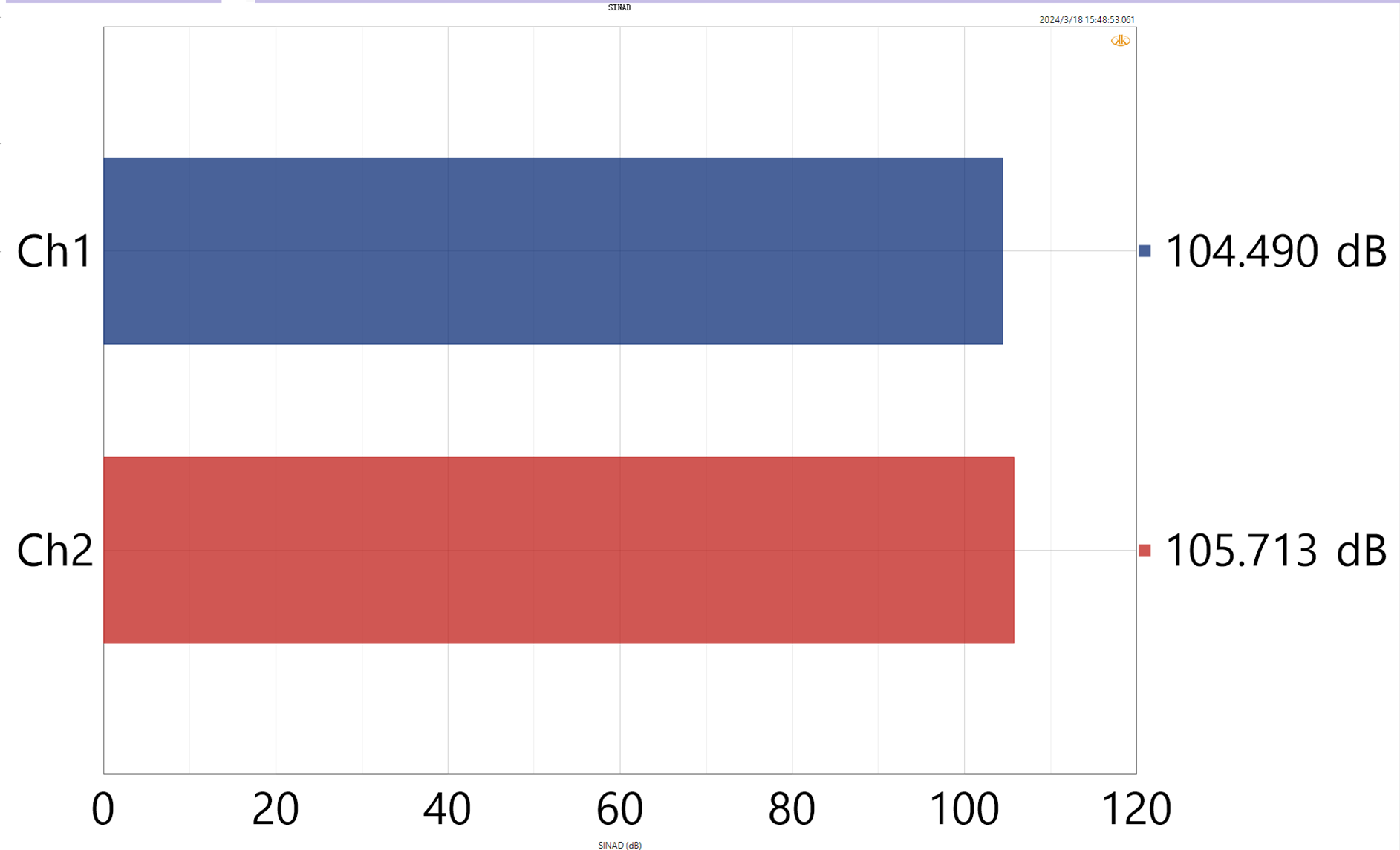

Signal-to-Noise and Distortion Ratio¶

CROSSTALK¶

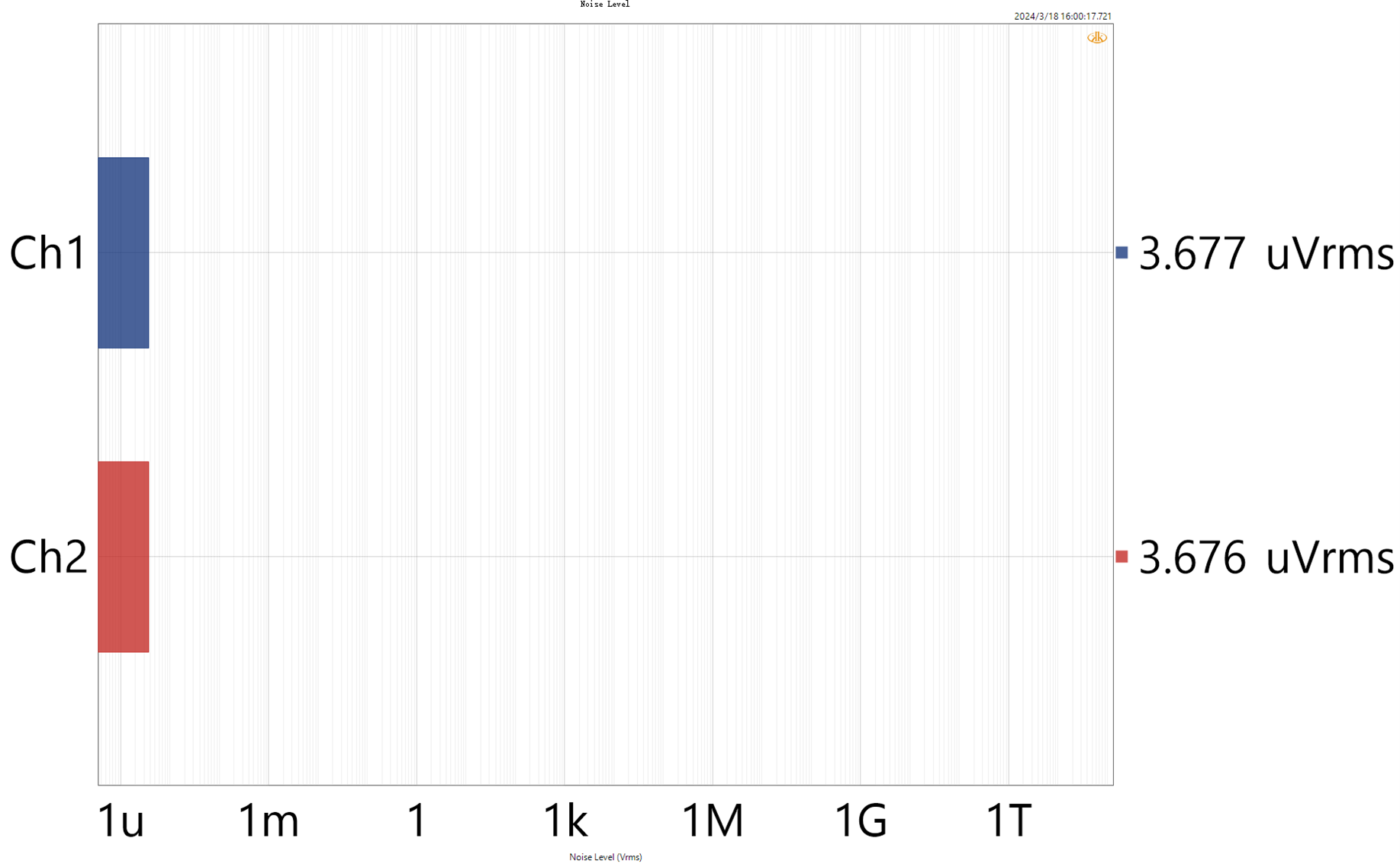

Noise Level¶
