A316-Codec-V1

USB AI Noise Reduction Microphone Module Based on XMOS XU316 Chip

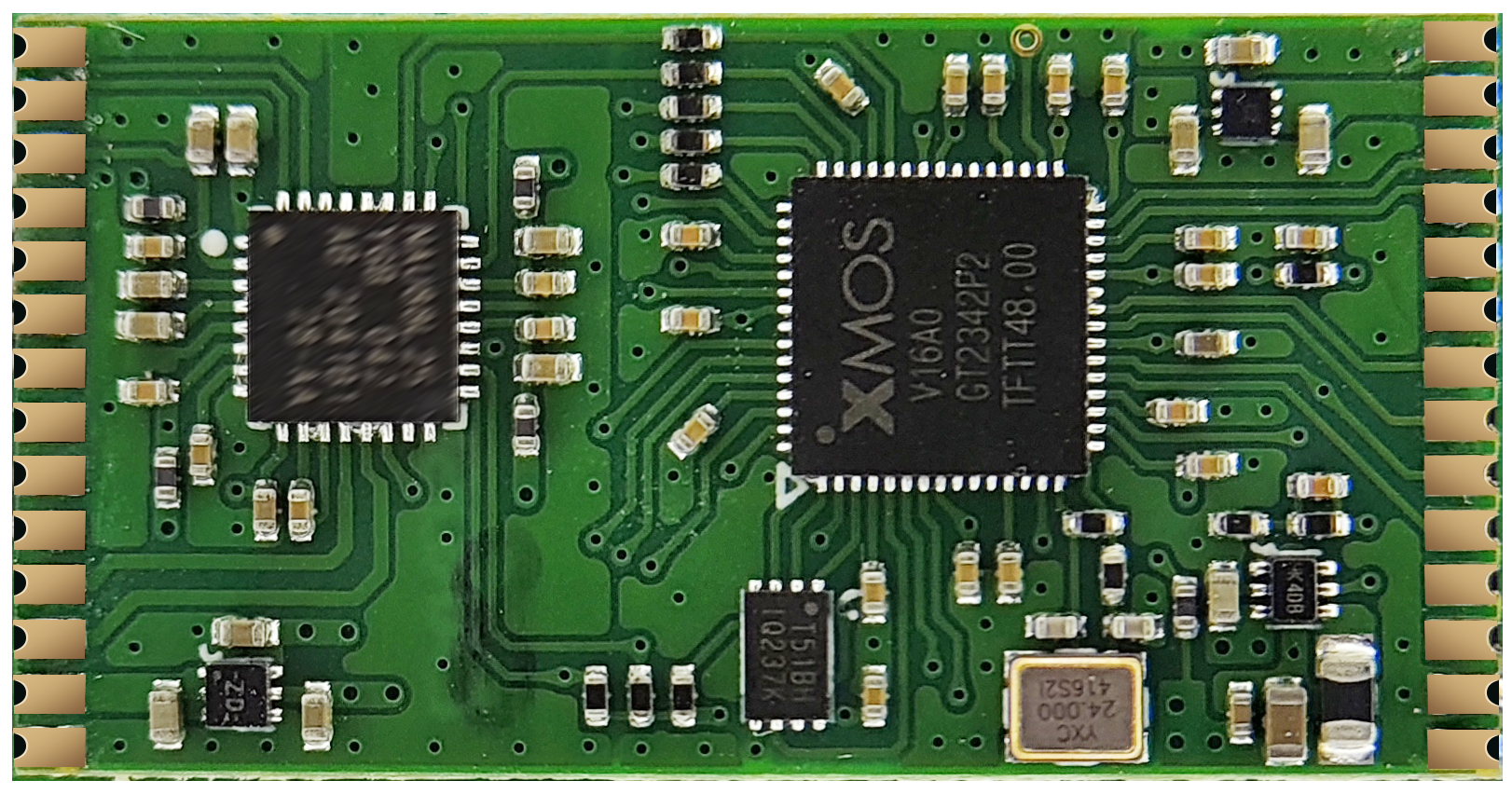

A316-Codec-V1 USB Codec Module

Product Overview

  • A316-Codec-V1 is a module based on XMOS XU316 and Codec chip, specifically designed for scenarios requiring microphone input and headphone output.
  • Combined with different firmware, it can be implemented in products such as streaming microphones and gaming headsets.

A316-Codec-V1 Module Datasheet 🛒 Purchase Samples

  • Core Functions
    • Based on XMOS XU316 chip platform
    • Integrated Codec
  • Interface Features
    • USB plug-and-play, no driver required
    • Supports multiple sampling rates: 16kHz/48kHz
    • Supports multiple bit depths: 16bit/24bit/32bit
  • System Compatibility
    • Supports multiple operating systems: Windows/macOS/Linux
    • UAC 1.0/2.0 protocol compatible
Item Value
Main Controller Chip XMOS XU316
Operating Voltage 3.3V
Operating Temperature -20°C ~ 85°C
Sampling Rate 16kHz/48kHz
Bit Depth 16bit/24bit/32bit
Interface Type USB 1.0/2.0
Dimensions 20mm x 30mm
  • USB Streaming Microphones
  • USB Gaming Headsets
  • USB Noise Reduction Audio Capture
Type Title Download
Datasheet A316-Mini-V1 Module Datasheet
Application Circuit A316-Codec-V1 Application Circuit
Type Description Download
Debugging Tools Debugging Tools

Firmware Customization Service

Phaten Audio provides professional firmware customization development services based on the A316-Codec-V1 hardware module, developing proprietary firmware according to your specific requirements.

  • Custom Development Process
    • Requirements analysis and solution determination
    • Firmware development and feature implementation
    • Verification and testing
    • Mass production support and technical services
  • Contact Us
    • For custom development services, please contact our technical support team: Email: hua@phaten.com

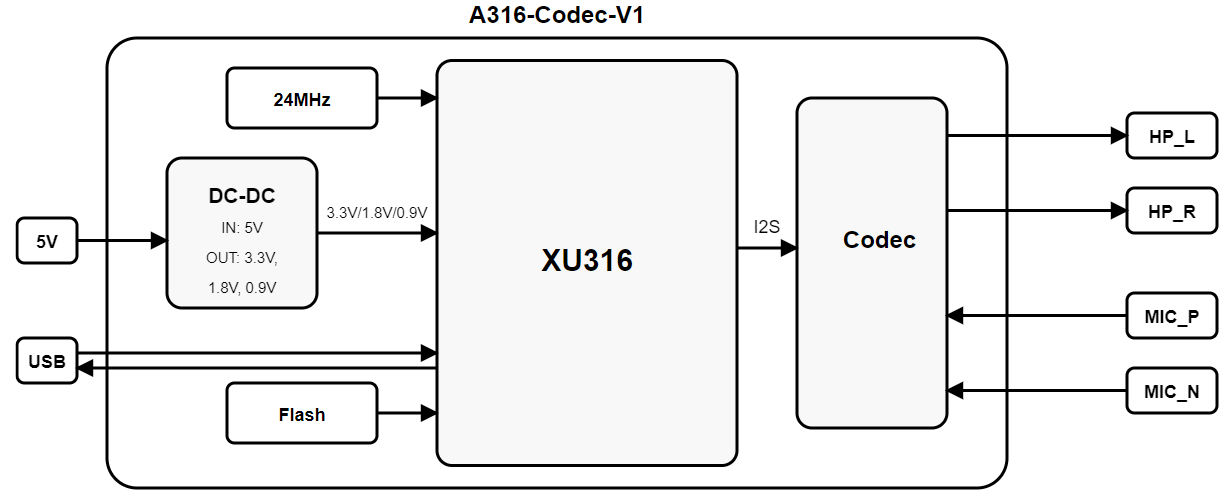

System Block Diagram

A316-Codec-V1 Block Diagram
Figure 1: A316-Codec-V1 System Block Diagram
