Hardware Module Products¶
| Product(Function)(Model) | A316-1926-V1 | A316-Mini-V1 |
|---|---|---|

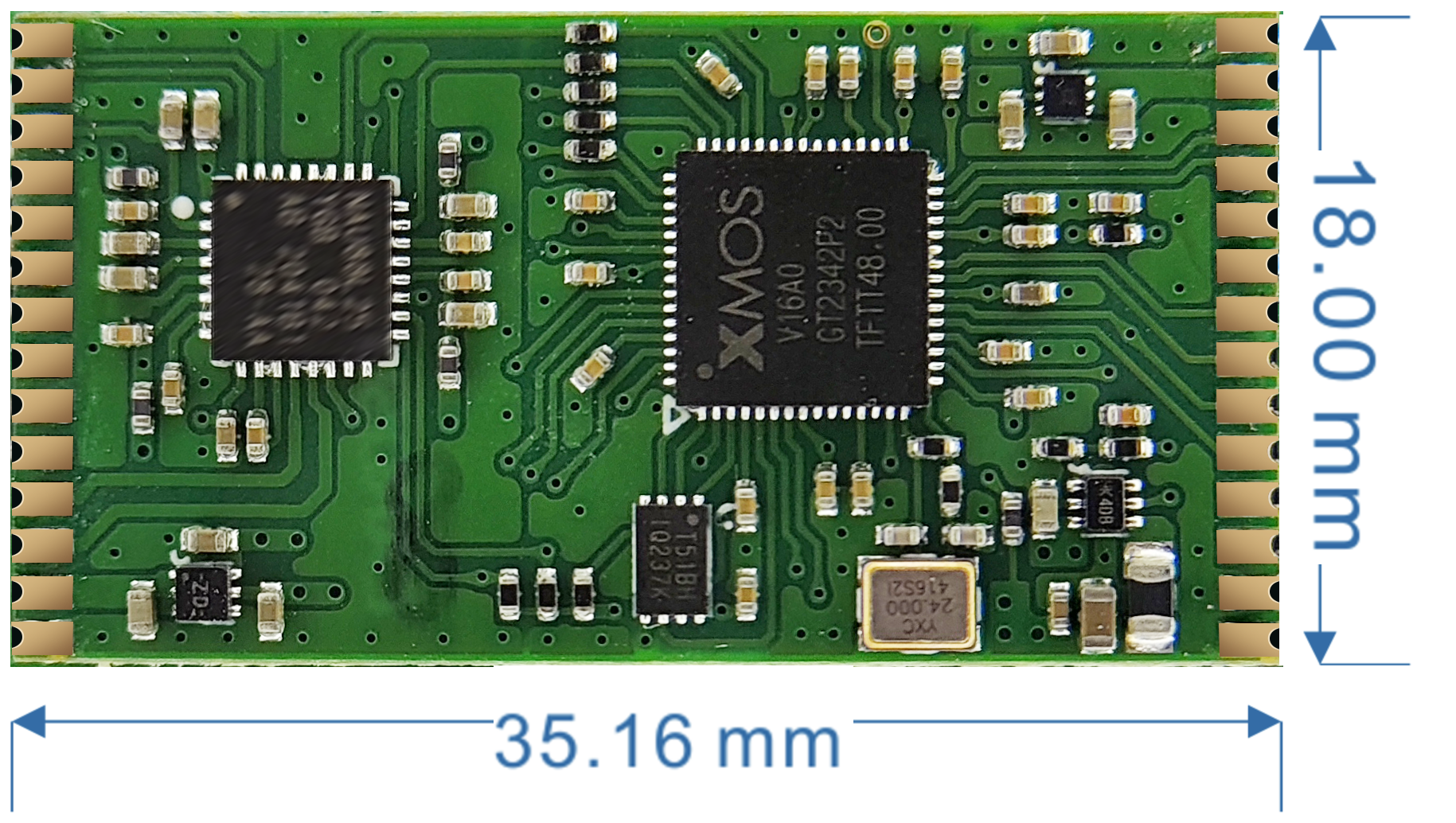

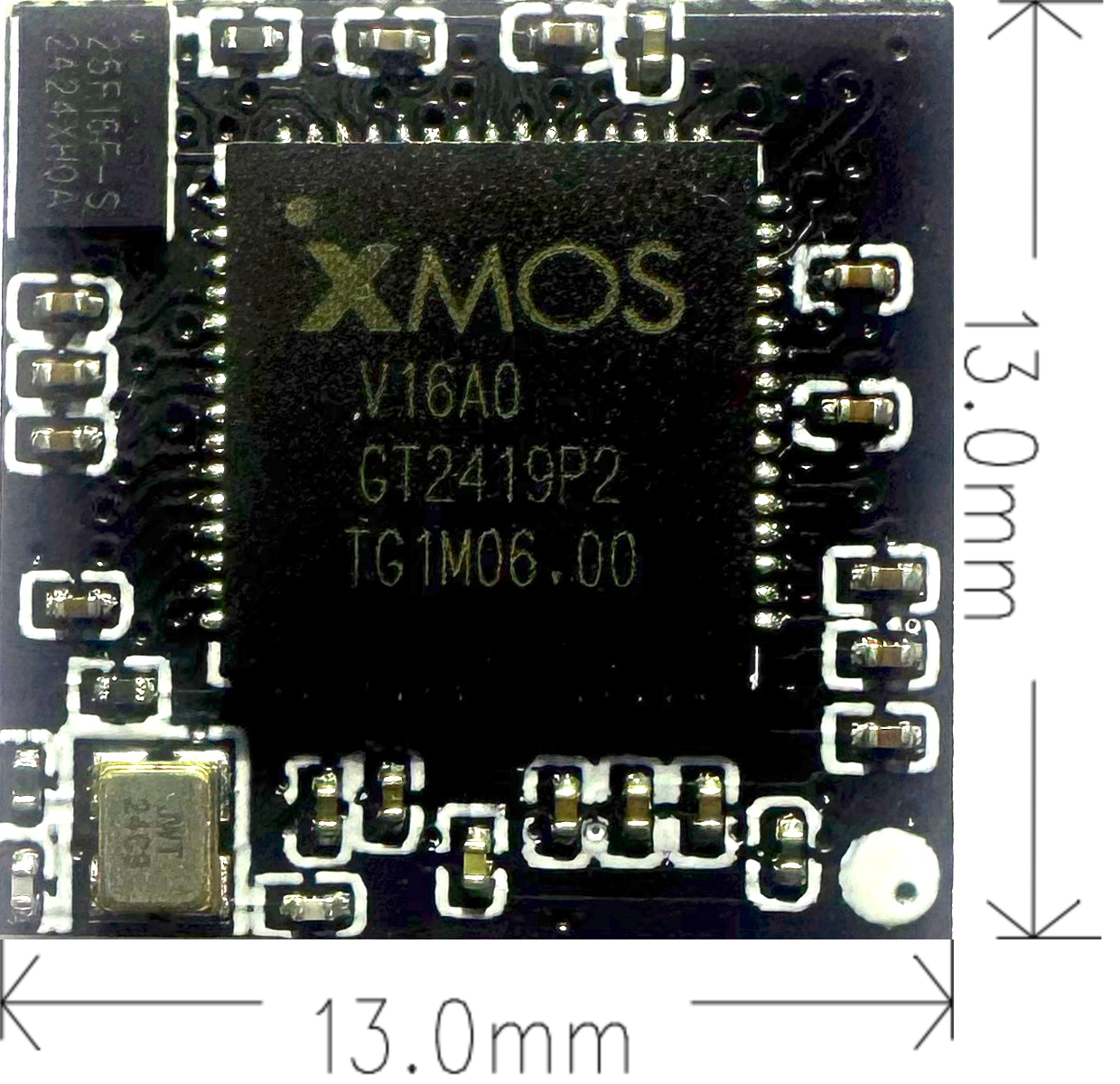

| Product Image |  |  |
| Product Description | The module uses XMOS XU316-1024-QF60BC24 chip, integrates high-precision DC-DC chip, outputting 1.8V and 0.9V voltage to XU316. The module integrates 48.152MHz and 49.152MHz active crystals, meeting different high-definition audio sampling rate requirements. | XMOS XU316 smallest size Mini module, requires external 3.3V, 1.8V and 0.9V power supply |
| Chipset Model | XU316-1024-QF60B-C24 | XU316-1024-QF60B-C24 |
| Pin NO. | 30 | 52 |
| Dimensions | 19mm × 26mm | 19mm × 26mm |
| Status | Active | Active |
