HF83311_VC1/HF83311Q_VC1 768KHz/DSD512 USB Multi-Channel and Multi-Interface HiFi Audio Decoder

1. Introduction

1.1 Product Description

HF83311_VC1/HF83311Q_VC1 is a USB multi-channel and multi-interface HiFi audio decoder supporting up to PCM 768KHz/DSD512, specifically designed for HiFi decoder audio applications.

HF83311_VC1/HF83311Q_VC1 supports multiple standard audio formats, including USB Audio Class 1.0/2.0, S/PDIF, and I²S interfaces. The flexible audio interfaces allow HF83311_VC1/HF83311Q_VC1 to connect to various audio data converters, digital audio receivers and transmitters, and digital signal processors.

Compatible with AES3, S/PDIF, IEC 60958, and EIAJ CP-1201 digital audio interfaces.

HF83311_VC1/HF83311Q_VC1 provides multiple input and output modes, including USB input/I²S output and USB input/S/PDIF output, meeting the requirements of different application scenarios.

Important Note

The HF83311Q_VC1 model supports MQA audio decoding, while the HF83311_VC1 model does not support this feature.

1.2 Product Features

Audio Performance Features

  • Supports input and output sampling rates up to 768kHz
  • Supports DSD64/128/256/512 formats
  • HF83311Q_VC1 supports MQA decoding
  • Built-in SSRC module, supporting conversion between different interfaces and different sampling rates
    • SSRC specifications: THD+N (@1kHz, 0dBFs) < -130dB, SNR: > 140dB
  • Supports 16-32bit audio data formats
  • Supports S/PDIF output

Interface Support Features

  • Multiple Digital Interface Support
    • Supports USB audio input
    • Supports I²S master mode audio output
    • Supports S/PDIF audio output
    • Supports UART configuration interface

USB Function Features

  • USB Interface Features
    • Supports UAC 1.0
    • Supports UAC 2.0
    • Supports firmware upgrade via USB
    • Supports HID, allowing MCU firmware upgrade via HID

System Compatibility - UAC 2.0 protocol, supports ASIO - Supports multiple operating systems, such as Windows, Linux, Android, macOS, and iOS

1.3 Application Scenarios

  • USB HiFi Decoder
  • USB HiFi Audio Interface
  • USB HiFi Digital Player

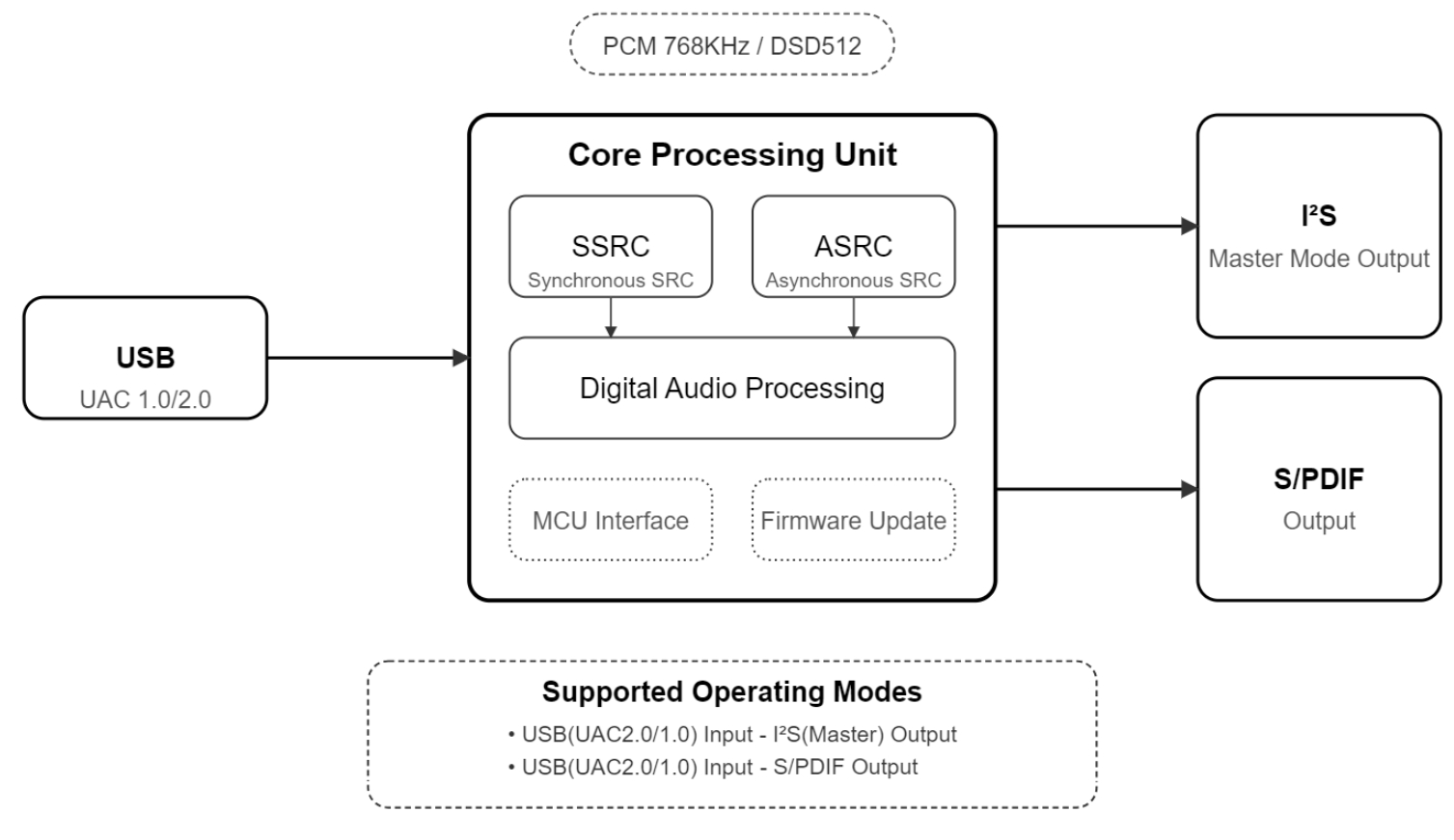

1.4 Product Function Block Diagram

HF83311 Block Diagram
Figure 1: HF83311_VC1/HF83311Q_VC1 Function Block Diagram

1.5 Ordering Information

PRODUCT ORDERING NUMBER PACKAGE BODY SIZE (NOM) Hardware Model Comments
HF83311_VC1 HF83311-VC1 SMT LGA-52 13x13mm A316-Mini-V1
HF83311Q_VC1 HF83311Q-VC1 SMT LGA-52 13x13mm A316-Mini-V1 Supports MQA Decoding

2. Modes and Specifications

2.1 Supported Input-Output Modes

Mode Number Input-Output Mode Description
1 USB(UAC2.0) in-I²S(MASTER) out USB input, I²S output, UAC2.0
2 USB(UAC1.0) in-I²S(MASTER) out USB input, I²S output, UAC1.0
3 USB IN(UAC2.0)-SPDIF OUT USB input, S/PDIF output, UAC2.0

2.2 Detailed Parameters for Each Operating Mode

2.2.1 USB(UAC2.0) in → I²S out Mode

Supported Audio Formats and Sampling Rates:

Audio Format Supported Sampling Rates
PCM 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768KHz
DSD Native DSD64, DSD128, DSD256, DSD512
DOP DOP64, DOP128, DOP256
MQA HF83311Q_VC1 model only

2.2.2 USB(UAC1.0) in → I²S out Mode

Supported Audio Formats and Sampling Rates:

Audio Format Supported Sampling Rates
PCM 48kHz

2.2.3 USB(UAC2.0) in → S/PDIF out Mode

Input/Output Sampling Rate Support:

Interface Audio Format Supported Sampling Rates
USB Input PCM 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz
S/PDIF Output PCM 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

SSRC (Synchronous Sample Rate Conversion) Function:

  • Input sampling rate ≤ 192kHz: Output at original sampling rate
  • Input sampling rate > 192kHz: Output at 192kHz after SSRC conversion

SSRC Performance Specifications:

  • THD+N (@1kHz, 0dBFs): ≤-130dB
  • SNR: ≥140dB

2.2.4 USB(UAC1.0) in → S/PDIF out Mode

Supported Audio Formats and Sampling Rates:

Audio Format Supported Sampling Rates
PCM 48kHz

3. Pin Configuration and Functions

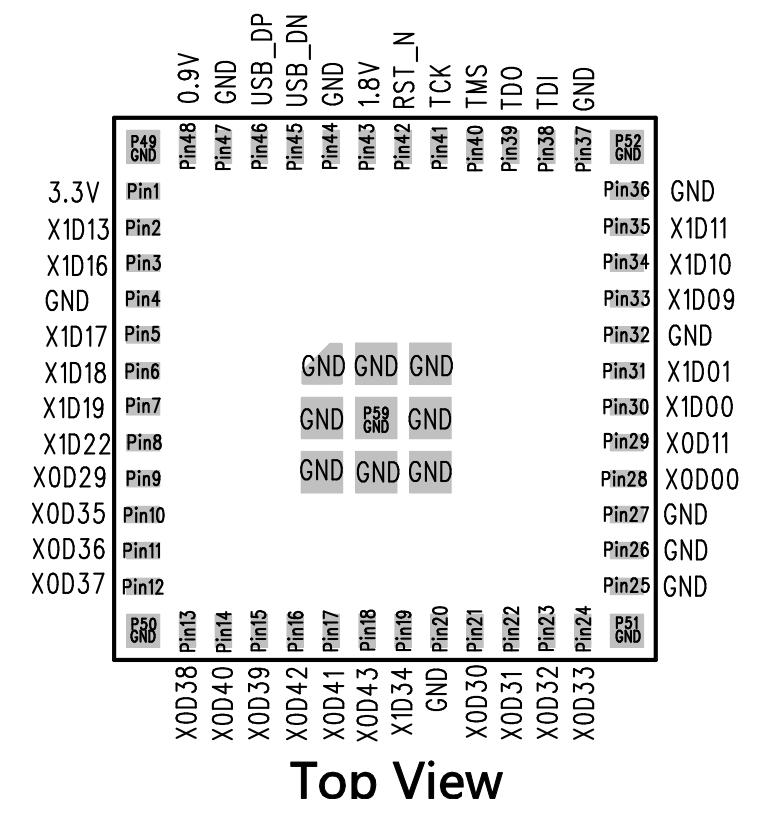

3.1 HF83311_VC1/HF83311Q_VC1 Pin Layout

HF83311-VC1 Pin Diagram
Figure 2: HF83311_VC1/HF83311Q_VC1 Pin Arrangement Diagram

3.2 HF83311_VC1/HF83311Q_VC1 Pin Description

Pin Number Name Type Function
1 3.3V P Module 3.3V Power Supply
2 X1D13 I/O NC
3 X1D16 I/O NC
4 GND P Module Ground
5 X1D17 I/O NC
6 X1D18 I/O NC
7 X1D19 I/O NC
8 X1D22 I/O NC
9 X0D29 I/O NC
10 X0D35 I/O I²S_OUT_SCLK(MASTER)
11 X0D36 I/O I²S_OUT_LRCLK(MASTER)
12 X0D37 I/O NC
13 X0D38 I/O I²S_OUT_DATA0(MASTER)
14 X0D40 I/O NC
15 X0D39 I/O I²S_OUT_MCLK(MASTER)
16 X0D42 I/O NC
17 X0D41 I/O NC
18 X0D43 I/O NC
19 X1D34 I/O S/PDIF Output
20 GND P Module Ground
21 X0D30 I/O NC
22 X0D31 I/O NC
23 X0D32 I/O NC
24 X0D32 I/O NC
25 GND P Module Ground
26 GND P Module Ground
27 GND P Module Ground
28 X0D00 I/O UART_TX, connects to MCU_RX
29 X0D11 I/O UART_RX, connects to MCU_TX
30 X1D00 I/O NC
31 X1D01 I/O NC
32 GND P Module Ground
33 X1D09 I/O NC
34 X1D10 I/O NC
35 X1D11 I/O XU316 Internal Clock Output
36 GND P Module Ground
37 GND P Module Ground
38 TDI I/O XTAG Debug PIN
39 TDO I/O XTAG Debug PIN
40 TMS I/O XTAG Debug PIN
41 TCK I/O XTAG Debug PIN
42 RST_N I/O System Reset, Active Low
43 1.8V P Module 1.8V Power Supply
44 GND P Module Ground
45 USB_DM I/O USB_DM
46 USB_DP I/O USB_DP
47 GND P Module Ground
48 0.9V P Module 0.9V Power Supply
49 GND P Module Ground
50 GND P Module Ground
51 GND P Module Ground
52 GND P Module Ground

Pin Type Description

I/O Type Definitions in Table: I=Input, O=Output, P=Power, I/O=Input/Output

4. Revision History

Version Date Description Revised by
V1.0 2025-05-07 Initial Version Release
